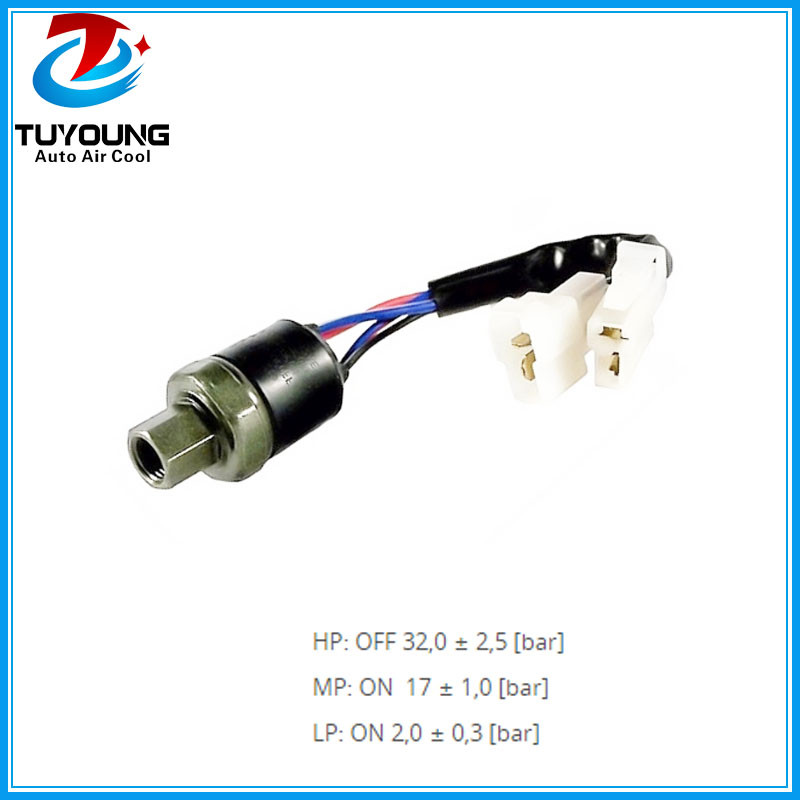

4 pins R134a auto ac pressure switch , black - HP / LP, blue MP; Female thread (internal) 7/16 ''- 20UNF (1 / 4''SAE)

4 pins R134a auto ac pressure switch , black - HP / LP, blue MP; Female thread (internal) 7/16 ''- 20UNF (1 / 4''SAE)

4 pins R134a auto ac pressure switch , black - HP / LP, blue MP; Female thread (internal) 7/16 ''- 20UNF (1 / 4''SAE)
CategoriesA/C Components
AlbumView larger image
BrandHYoung
ModelHY-PS54
Brand nameHYoung
model typeA/C Pressure Switch R134a
Pins4 pins
HPOFF 32.0 ± 2.5 [bar]
MPON 17 ± 1.0 [bar]
LPON 2.0 ± 0.3 [bar]
Female thread (internal)7/16 '' - 20UNF (1 / 4''SAE)
FOB portHuangpu Shenzhen
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Download DOC
Update Time2019-12-05
Detail Information


4 pins R134a auto ac pressure switch , black - HP / LP, blue MP; Female thread (internal) 7/16 ''- 20UNF (1 / 4''SAE)

Item ID: HY-PS54

Specification:
Refrigerant: R134a
HP: OFF 32.0 ± 2.5 [bar]
MP: ON 17 ± 1.0 [bar]
LP: ON 2.0 ± 0.3 [bar]
Refrigerant: R134a
Electrical parameters: U = DC 24V, I = 3A
                                    U = DC 12V, I = 5A
Cables: black - HP / LP
                        blue MP
Female thread (internal) 7/16 '' - 20UNF (1 / 4''SAE)

Package size: 15*15*15mm

Color : silver

Quality: Top A

Model: Car air  Pressure Switch

Product Name: a/c Pressure Switch

Additional Notes: Produce in China

Refrigerant: R134a
