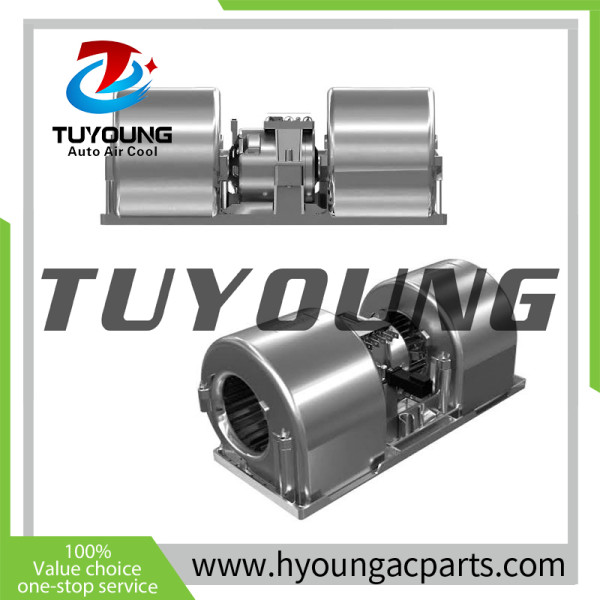

24V heavy-duty vented HVAC blower motor with resistor fit Caterpillar wheel loaders, articulated dump trucks, off-highway trucks, motor graders 4532441 453-2441

24V heavy-duty vented HVAC blower motor with resistor fit Caterpillar wheel loaders, articulated dump trucks, off-highway trucks, motor graders 4532441 453-2441
24V heavy-duty vented HVAC blower motor with resistor fit Caterpillar wheel loaders, articulated dump trucks, off-highway trucks, motor graders 4532441 453-244124V heavy-duty vented HVAC blower motor with resistor fit Caterpillar wheel loaders, articulated dump trucks, off-highway trucks, motor graders 4532441 453-244124V heavy-duty vented HVAC blower motor with resistor fit Caterpillar wheel loaders, articulated dump trucks, off-highway trucks, motor graders 4532441 453-244124V heavy-duty vented HVAC blower motor with resistor fit Caterpillar wheel loaders, articulated dump trucks, off-highway trucks, motor graders 4532441 453-2441
Share
CategoriesAuto AC blower fan motors
BrandTUYoung
ModelHY-FM691
Brand nameTUYOUNG
Part Nameheavy-duty vented HVAC blower motor
Voltage24 V
Car modelCaterpillar: Articulated Dump Trucks: 725C, 725C2, 730C, 730C2, 735C, 740C, 745C;
OEM4532441 453-2441 322-7212 3227212 H11-001-220 006-B40-22 4130000633005
fitWheel Loaders: 950 GC, 966 GC, 980 GC; Motor Graders: 120; Off-Highway Trucks / Tractors: 773E
DownloadDownload pdf
Contact Now
Add to Wishlist
Detail Information

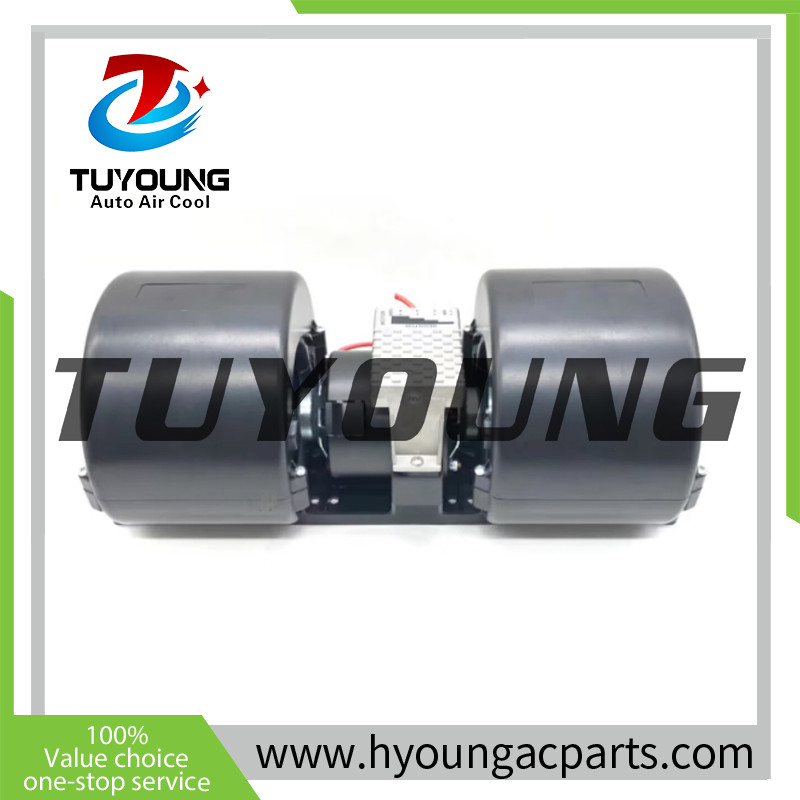

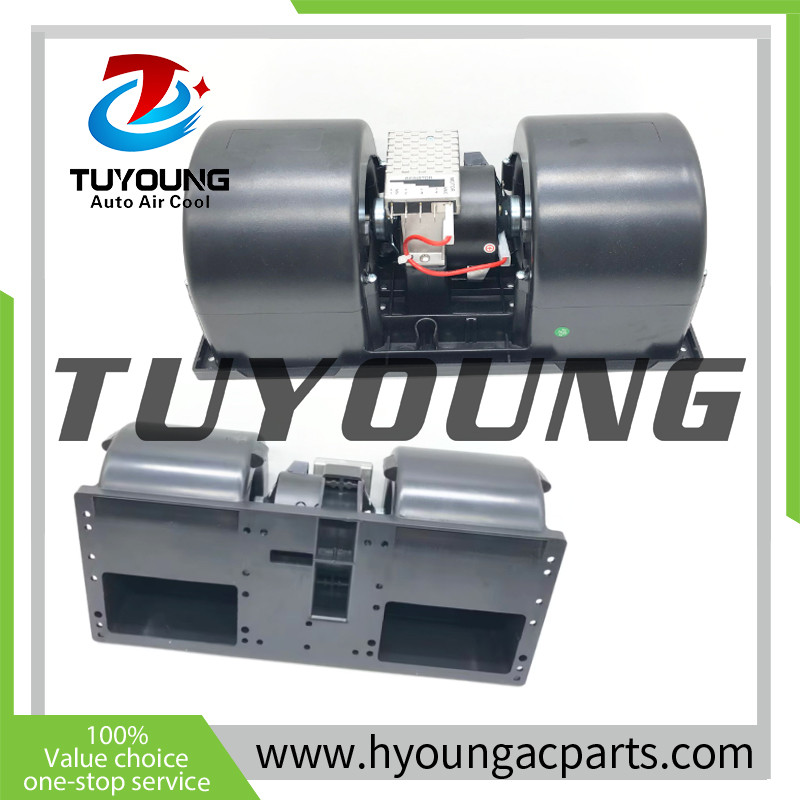

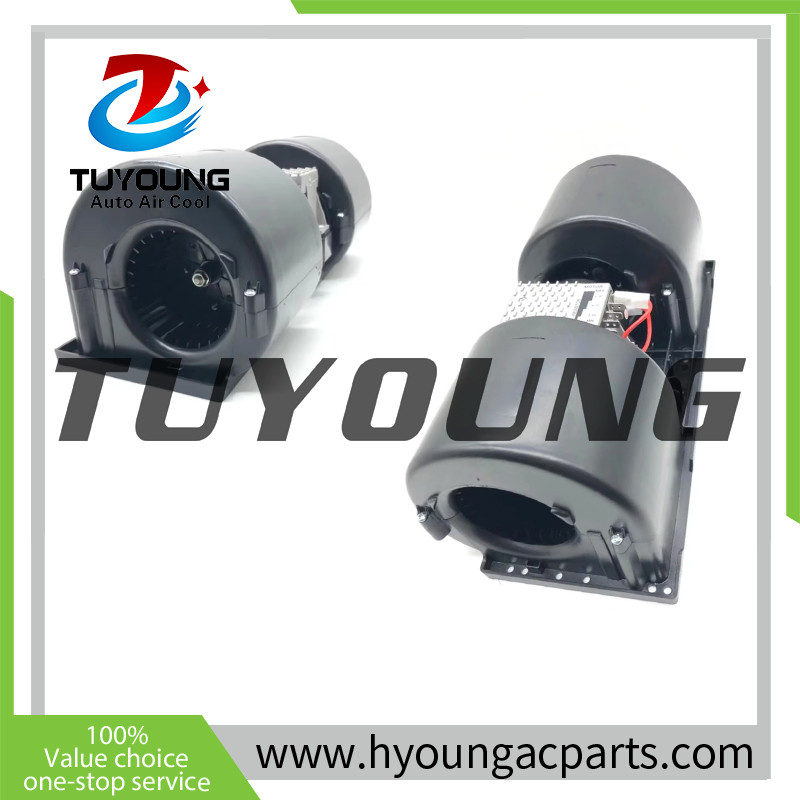

24V heavy-duty vented HVAC blower motor with resistor fit  Caterpillar Cat wheel loaders, articulated dump trucks, off-highway trucks, and motor graders 4532441 453-2441



Item ID: HY-FM691


Specifications

Brand name: TUYOUNG
Voltage: 24V

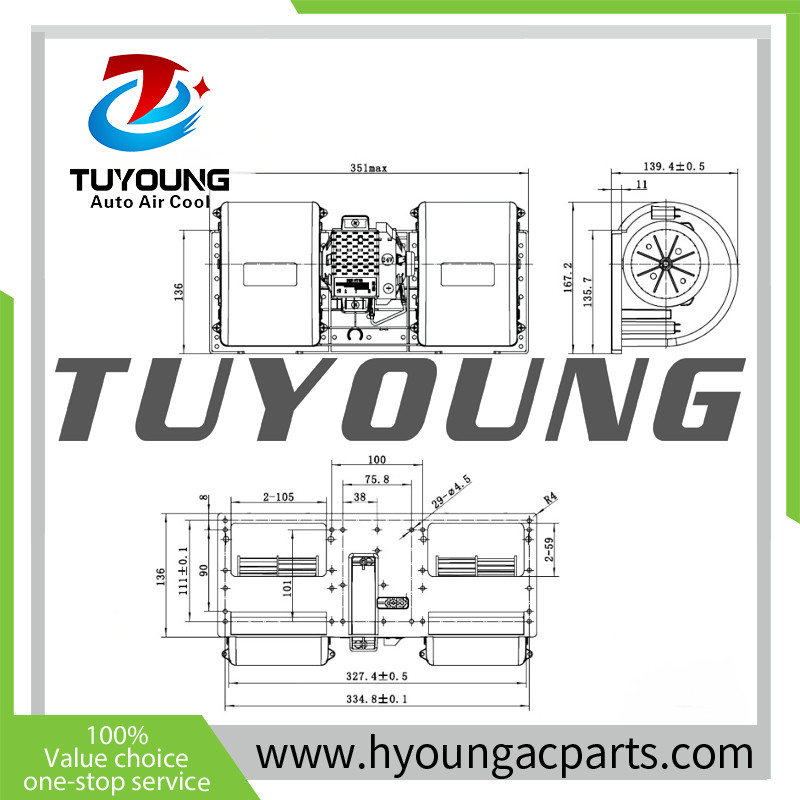

Maximum total width: 351 mm (351max)
Outer profile height: 167.2 mm
Total depth: 139.4 ± 0.5 mm
Airflow: 400 CFM
Material: Durable ABS plastic
Rotation: Counter-clockwise lead end (CCWLE)
Connector: 2-pin DT Female

OEM#

4532441
453-2441
322-7212
3227212
H11-001-220
006-B40-22,
4130000633005

Car model:

Caterpillar:
Articulated Dump Trucks: 725C, 725C2, 730C, 730C2, 735C, 740C, 745C ;
Wheel Loaders: 950 GC, 966 GC, 980 GC ;
Motor Graders: 120 ;
Off-Highway Trucks / Tractors: 773E, 776C, 777C, 769D, 775E, and others.

Performance Table:
Speed Setting  Voltage     Current     Rotational Speed
1st Gear              24VDC ≤ 3.0A     1650 RPM ± 5%
2nd Gear            24VDC       ≤ 4.5A     2300 RPM ± 5%
3rd Gear         24VDC  ≤ 6.5A     2950 RPM ± 5%
4th Gear         24VDC  ≤ 10A      3500 RPM ± 5%
